HP Compaq IPIBL-LB (Benicia)

HP Compaq IPIBL-LB (Benicia)

Hodnotenie produktu: Zatiaľ bez hodnotenia. Buďte prvý!

Vaše hodnotenie:

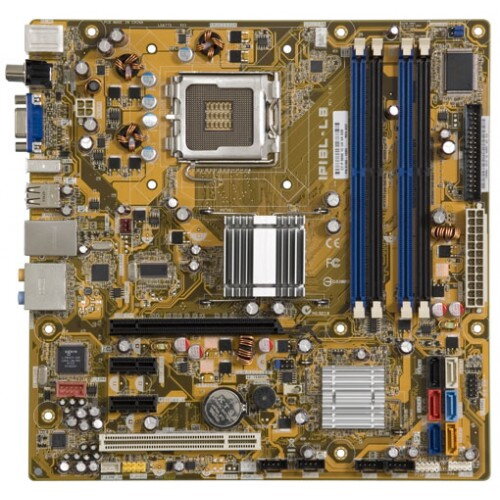

Základná doska HP Compaq IPIBL-LB (Benicia)

24 € s DPH

20 €

Dostupnosť: Skladom

Výrobca: HP Compaq

Skladom:1 ks

Motherboard descriptionManufacturer's motherboard: Asus IPIBL-LBHP/Compaq name: Benicia-GL8EForm FactorMicro-ATX: 24.5 cm (9.6 inches) x 24.5 cm (9.6 inches)ChipsetIntel G33Front-side bus speed800/1066/1333 MHzProcessor upgrade informationMotherboard supports the following processor upgrades:
Intel Core 2 Quad (Y) Q9xxxxIntel Core 2 Duo (W) E8xxxIntel Core 2 Quad (K) up to Q6600Core 2 Duo E6x00 (C) up to E6700Core 2 Duo E4x00 (C) up to E4400Memory upgrade informationDual channel memory architectureFour 240-pin DDR2 DIMM socketsSupported DIMM types:PC2-5300 (667 MHz)PC2-6400 (800 MHz)Non-ECC memory only, unbufferedSupports 2GB DDR2 DIMMsSupports up to 8 GB on 64 bit PCsSupports up to 4 GB* on 32 bit PCs*32-bit operating systems cannot address a full 4.0 GB of memory.
VideoIntegrated graphics using Intel GMA 3100*Integrated video is not available if a graphics card is installed
Integrated graphics using Intel GMA 3100Also supports PCI Express x16 graphics cards*AudioIntegrated Audio ALC888S*Integrated audio is not available if a sound card is installed.
Audio CODEC: ALC888S7.1 channel high-definition audioNetworkLAN: 10-Base-TInterface: Integrated into motherboardTechnology: Realtek 8111CData transfer speeds: up to 10/100 Mb/sTransmission standards:10-Base-T Ethernet Expansion SlotsOne PCIOne PCI Express x16Two PCI Express x1I/O PortsBack I/O portsFigure 2: Back I/O panel

1 - PS/2 mouse port (green) 2 - Coaxial SPDIF Out 3 - Video Graphics Adapter 4 - IEEE 1394a 5 - RJ45 Network (LAN) 6 - Audio: Center/Subwoofer (yellow orange) 7 - Audio: Rear Speaker Out (black) 8 - Audio: Line In (light blue) 9 - Audio: Line put (lime) 10 - Audio: Microphone (pink) 11 - Audio: Side Speaker Out (gray) 12 - USB 2.0 ports 1, 2, 3, and 4 13 - Coaxial SPDIF In 14 - PS/2 keyboard (purple) Internal ConnectorsOne 24-pin ATX power connectorOne 4-pin ATX power connectorSix SATA connectorsOne floppy drive connectorTwo 12v fan connectors for CPU fan and PC fanOne 9-pin header for power button, reset button, power LED, and HDD LEDThree USB 2.0 headers supporting 6 USB ports or devicesOne IEEE 1394a headerOne SPDIF audio output headerOne 4-pin audio line-input connector (interrupts line input on back panel, Vista capable, requires matching front audio jack module)One 9-pin audio header for headphone-out and microphone-in (yellow, Vista capable, requires matching front audio jack module)Intel high-definition Audio/Modem Link (2x8 HDMI connector)One jumper for resetting BIOS settingsOne jumper to disable BIOS password checking

Socket: Socket LGA775
Formát základnej dosky: mATX (micro ATX)
Operačná pamäť: DDR2
